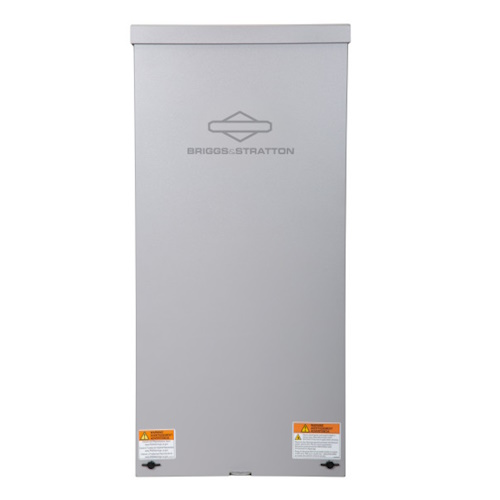

Briggs & Stratton 200 Amp NEMA 3R 120/240V Single Phase SED Transfer Switch - 71270

200 Amp Generator Transfer Switch

The Briggs and Stratton 200 Amp Automatic Transfer Switch (ATS) with Service Entrance Disconnect has a NEMA 3R enclosure for indoor and outdoor use. This single phase 2-pole generator transfer switch fits homes with 200-Amp service. Its Service Entrance Disconnect Rating allows installation with a circuit breaker panel rated for 200 amps with or without a main circuit breaker.

Operation: When the power goes out, the generator starts within a few seconds. The ATS disconnects the utility lines from the home and then connects the generator, restoring power just seconds after it goes out.

Briggs and Stratton 200 Amp Automatic Transfer Switch

The Briggs and Stratton 200 Amp Automatic Transfer Switch is an important part of your generator system. A permanent connection to your home's electrical system allows your Briggs and Stratton standby generator to operate automatically. A standby generator installation requires an automatic transfer switch.

This UL Listed 1008 ATS is compatible with the Symphony Choice Power Management System (Sold Separately.)

Features:

• The Briggs & Stratton 200 amp Standard SED Transfer Switch, NEMA 3R is designed to automatically detect a utility power outage, promptly signaling your generator to activate and restore power to your home. Once utility power is back, it effortlessly switches your essential loads back, ensuring a smooth transition.
• A Briggs & Stratton® Transfer Switch provides all the intelligence your generator needs to make sure the power stays on when utility power fails. It automatically senses loss of utility power and signals your generator to start and restore power. When power has been restored, the transfer switch will transfer your vital loads back to utility power.
• Signals generator to start and manage backup power when utility power goes out.
• 7 Year Limited Warranty
• Connected through your home’s existing wiring, saving on the cost of installation.
• UL 1008
• Compatible with Symphony Choice Power Management
• Most comprehensive limited warranty in the industry with parts, labor, and travel included

Specifications:

• Electrical Generation Amperage: 200
• Electrical Generation Frequency: 60 Hz
• Electrical Generation Phase: Single
• Electrical Generation Voltage: 120/240

• MPN: 071270
• UPC: 011675712709
