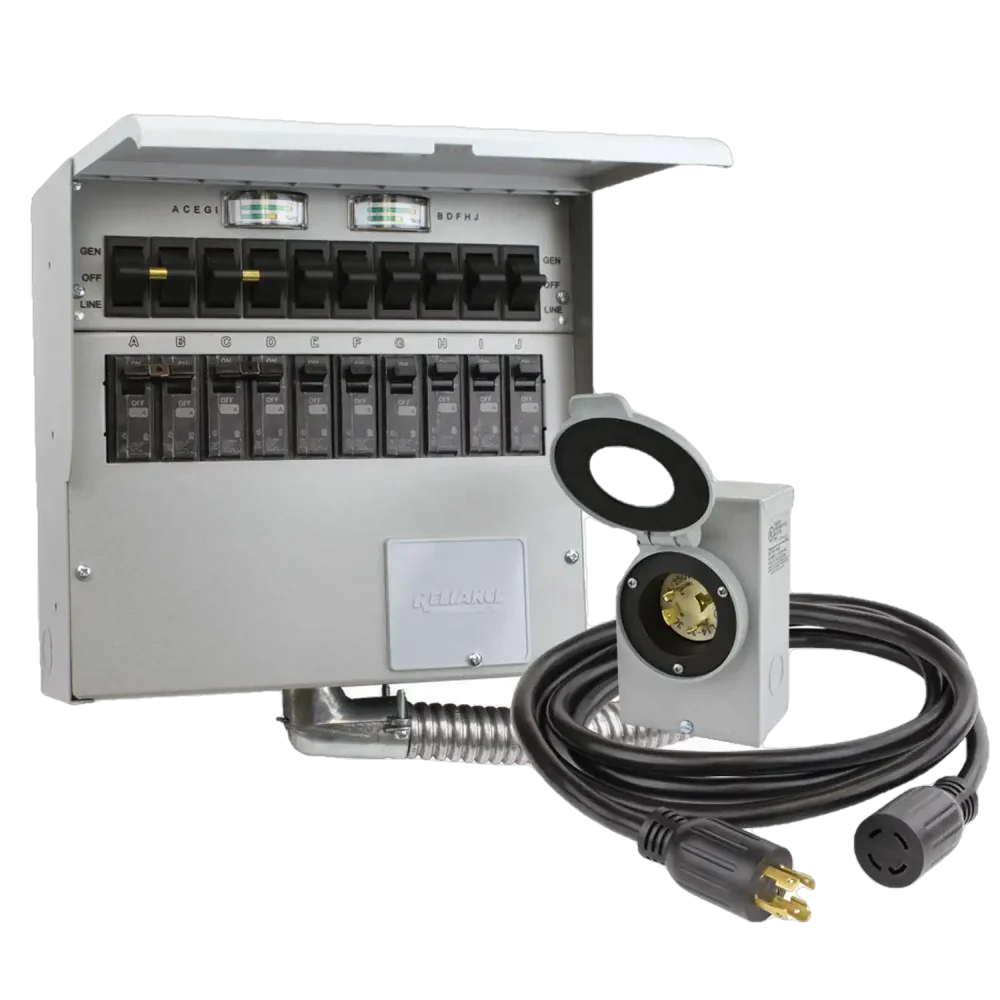

Reliance Controls 310CRK Pro/Tran 2 30-Amp Manual Transfer Switch Kit with 10-Circuit Load Center/10' Cord

The Pro/Tran 2 is the next generation of Loadside™ manual transfer switch by Reliance Controls. These indoor surface mount transfer switches are designed for fast installation in residential and commercial applications. The 16-inch flexible conduit whip attaches easily to a knockout on the load center and all factory wires are clearly marked and colored for identification. Simply select the circuits needed in an emergency and connect them to the Pro/Tran 2 wire leads as instructed in the manual.

Pro/Tran 2 transfer switches feature a rugged powder-coated steel cabinet with six combination 1/2-inch and 3/4-inch knockouts, and 1-inch interchangeable circuit breakers. The 1-inch breakers allow a larger circuit size (max of 1 x 30A double-pole), and installation of AFCI & GFCI breakers. All models include a hinged detachable cover to help protect and finish off the overall look of the product.

*Note: Please make sure you have consulted with an electrician to verify the manual transfer switch is in fact the model and specification necessary for your situation.

Features:

ProTran 2 - Power Transfer Switch Kit (10 Circuit)

• For portable generators with L14-30

Safest Way to Distribute Power

• Eliminates dangerous back feeds and electrical overloads

Pro/Tran2 10-Circuit 120/240V Manual Transfer Switch

• The next generation of Loadside manual transfer switches

(10) Total Circuits (1" Interchangeable Style)

• (1) 20A 2-Pole, (2) 20A 1-Pole and (6) 15A 1-Pole

30-Amp AND 20-Amp Compatible (30A Breaker Not Included)

• A and B Circuits can be used for a 30-A 2-Pole circuit (Owner Supplied)

NEW Color-Coded Built-In Wattage Meter

• Helps you balance and manager generator load

Powder-Coated Steel Cabinet For Indoor Installation

• 18" Flexible conduit with all factory wires clearly marked/colored

• Hinged, Non-metallic cover protects the breakers/switches

10' 30-Amp (L14-30) Power Cord

• Heavy-Duty, rubber molded design rated up to 7500w at 240V

30-Amp (L14-30) Power Inlet Box

• Rain-tight design with flip-lid keeps dirt and debris out; Generous wiring space

Certified to UL Standard 1008 and Meets All Req'd 702 NEC ANSI/NFPA 70

5-Year Limited Warranty

Overview:

• Product Weight: 20 lbs
• Width: 11-3/4"
• Height: 4-1/2"

Specifications:

• Voltage: 120, 240V
• Frequency: 60 Hz
• Electrical Phases: 1
• Max Generator Input: 30A
• Enclosure Material: NEMA 1R

Product Assurance:

• Certifications: UL
• Warranty: 5 Year
