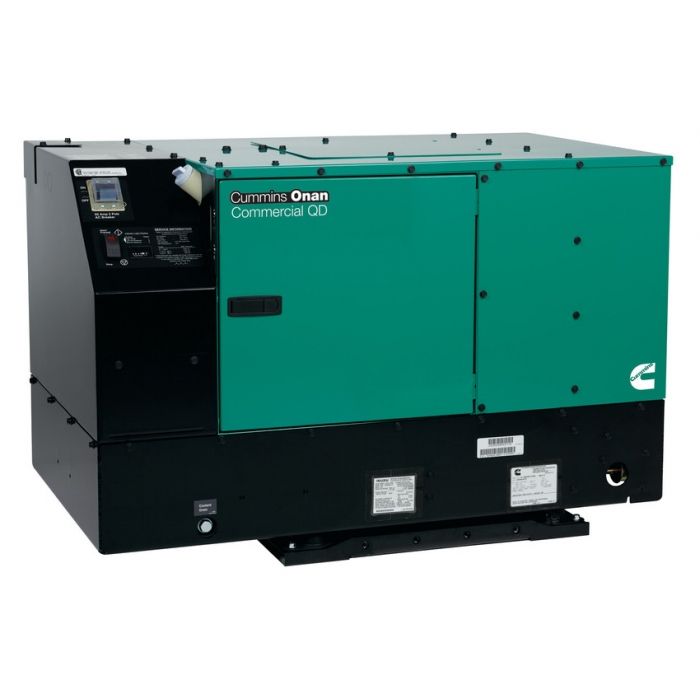

Cummins Onan QD 10000 Diesel Commercial Mobile Generator 10.0HDKCC-42345
Product Description
Cummins Onan QD 10000 Diesel Commercial Mobile Generator- 10.0HDKCC-42345, 10kW Prime, Single-Phase, 120/240 Volt, Liquid-Cooled
The Quiet Diesel Series models are the heavy-duty choice when low noise and low vibration are required. Their revolutionary design makes these generator sets up to 15 dB(A) quieter than other diesel-powered generators, and quieter than most gasoline sets. The units are totally enclosed, including cooling, muffler and intake systems. Cummins backs this generator with a standard 2 year limited warranty.
Features
- Automatic glow plug eliminates preheat time uncertainty.
- Efficient and convenient operation monitoring and control.
- Convenient, top-mounted switches and coolant level check/fills.
- Service and maintenance points accessible through easy-latch side service door.
- Unique sound-controlled housing encloses cooling system and muffler - simplifies installation.
- 2-year limited warranty
Specifications
| Manufacturer | Cummins |
|---|---|
| SKU | 10.0HDKCC-42345 |
| Model Number | QD 10000 |
| Alternate Model Number | A055E848 |
| Generator Grade | Commercial |
| Generator Style | Commercial Mobile Generator |
Engine Details
| Engine/Motor Brand | Kubota |
|---|---|
| Engine Model | D1503-M |
| Fuel Type | Diesel |
| Starting System | Electric |
| Horsepower | 24.8 HP |
| Engine/Motor Type | 3-Cylinder, Vertical, Liquid-Cooled, In-Line |
| Displacement | 1499 cc |
| Engine RPM | 1800 RPM |
| Generator RPM | 1800 RPM |
| Fuel Tank | Add @ Checkout |
| Fuel Cons. @ 50% Ld | 0.5 |
| Fuel Cons. @ 100% Ld | 0.8 |
| Fuel Induction System | Electronic Fuel Injection |
| Engine Governor | Electronic |
| Operational Volume (dB @10ft) | 71.0 |
| Muffler/Exhaust | Enclosed |
| Altitude Affected | Yes, Call For More Information |
Accessories
| Remote Panel | Add At Checkout |
|---|---|
| Wire Harness | Add At Checkout |
| Vibration Isolators | Yes |
| Battery For Electric Start | Not Included |
Warranty
| Warranty | 2 Year (Limited) |
|---|
Other Information
| Weight (Lbs.) | 768 |
|---|---|
| Ship Weight (Lbs.) | 808 |
| Operating Weight (Lbs.) | 768 |
| Free Shipping | Yes |
| Dimension No Wheel Kit | 24.5"W x 41.5"L x 27"H |
| Agency Compliance | CARB (California), EPA Tier 4 Final, National Park Approved |
| QSP | 4-10wk |
| Stk. Itm. | Yes |
Generator Details
| Surge Start Watts | 10,000.0 |
|---|---|
| Continuous Rated Watts | 10,000.0 |
| Prime Rating Watts | 10,000 |
| Phase | Single-Phase |
| Voltage | 120, 240 |
| Rated Amps @ Min Volt (Commonly 120v) | 83.3 |
| Rated Amps @ Max Volt (Commonly 240v 1-Phase) | 41.6 |
| Frequency | 60 Hz |
| Power Factor | 1.0 |
| Poles | 2 |
| Voltage Regulation | +/- 0.5% |
| Voltage Regulation Type | Digital |
| Frequency Regulation | Plus Or Minus 0.5 Percent |
| Circuit Breakers | 45 Amp |
| Insulation | Class H |
