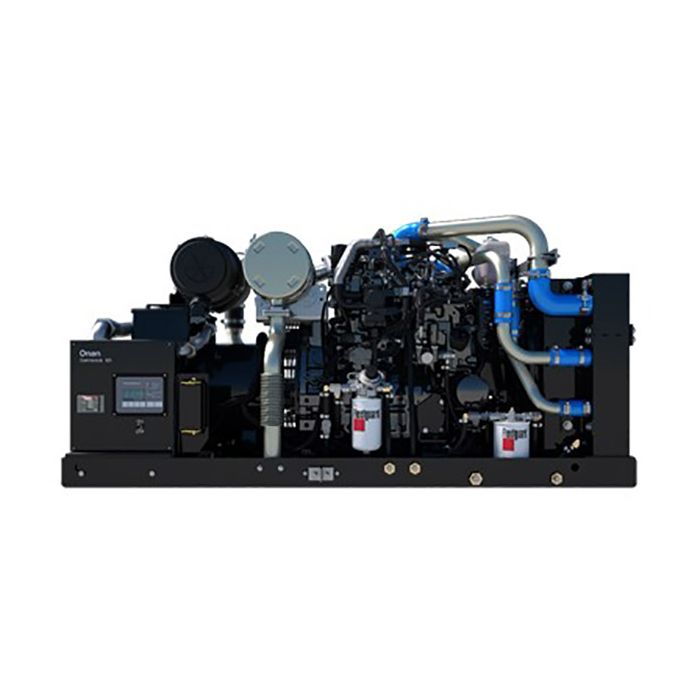

Cummins Onan SD 20000 Diesel Commercial Mobile Generator 20HDKDB-02
Product Description
Cummins Onan SD 20000 Diesel Commercial Mobile Generator - 20HDKDB-02, 20kW Prime, 3-Phase, 120/208 Volt, Liquid-Cooled
The Cummins Onan diesel lineup delivers exceptionally quiet performance and proven durability across multiple power ratings. With more than 100 years of expertise in power generation, Cummins engineers solutions designed specifically for demanding commercial operations.
Features
• Tier 4 emissions compliance without regeneration
• Tier 4 capabilities to monitor DEF level and manually activate or inhibit exhaust system cleaning
• Over 100 years of Cummins power generation technology and innovation
• Powerful 36 hp engine
• Total weight - 1035 lbs. (469 kg)
• Low vibration for smooth operation
• Cross-flow radiator provides increased cooling efficiency
• One-year (prime) and two-year (standby) base warranty supported by a worldwide Cummins twenty-four hour, seven days-a-week, distributor network
• Accepts 100% rated load in a single step
• Standard Power Command Control (PCC) 1300 technology provides digital (precise) frequency and voltage regulation
Specifications
| Manufacturer | Cummins |
|---|---|
| SKU | 20HDKDB-02 |
| Model Number | SD 20000 |
| Alternate Model Number | A066T980 |
| Generator Grade | Commercial |
| Generator Style | Commercial Mobile Generator |
Engine Details
| Engine/Motor Brand | Kubota |
|---|---|
| Engine Model | D1803-CR-TIE4BG |
| Fuel Type | Diesel |
| Starting System | Electric |
| Horsepower | 36.2 HP |
| Engine/Motor Type | 3-Cylinder, 4-Cycle, Vertical, Liquid-Cooled, In-Line |
| Displacement | 1498 cc |
| Engine RPM | 1800 RPM |
| Generator RPM | 1800 RPM |
| Fuel Tank | Add @ Checkout |
| Fuel Cons. @ 50% Ld | 0.7 |
| Fuel Cons. @ 100% Ld | 1.4 |
| Fuel Induction System | Electronic Fuel Injection |
| Engine Governor | Electronic |
| Operational Volume (dB @10ft) | 79.0 |
| Altitude Affected | Yes, Call For More Information |
Accessories
| Remote Panel | Add At Checkout |
|---|---|
| Wire Harness | Add At Checkout |
| Vibration Isolators | Yes |
| Battery For Electric Start | Not Included |
Warranty
| Warranty | 2 Year (Limited) |
|---|
Other Information
| Weight (Lbs.) | 1035 |
|---|---|
| Ship Weight (Lbs.) | 1450 |
| Operating Weight (Lbs.) | 1035 |
| Free Shipping | Yes |
| Unit Dimensions | 25.7"W x 57.2"L x 28.2"H |
| Agency Compliance | CARB (California), EPA Tier 4 Final |
| Stk. Itm. | No |
Generator Details
| Surge Start Watts | 20,000.0 |
|---|---|
| Continuous Rated Watts | 20,000.0 |
| Prime Rating Watts | 20,000 |
| Phase | 3-Phase |
| Voltage | 120, 208 3-Phase |
| Rated Amps @ Max Volt (Commonly 240v 1-Phase) | 69.0 |
| Frequency | 60 Hz |
| Power Factor | 0.8 |
| Poles | 3 |
| Voltage Regulation | +/- 0.5% |
| Frequency Regulation | Plus Or Minus 0.5 Percent |
| Circuit Breakers | 100 Amp |
| Bearings | Single-Bearing (for Close-Coupling to Engine) |
| Insulation | Class H |
