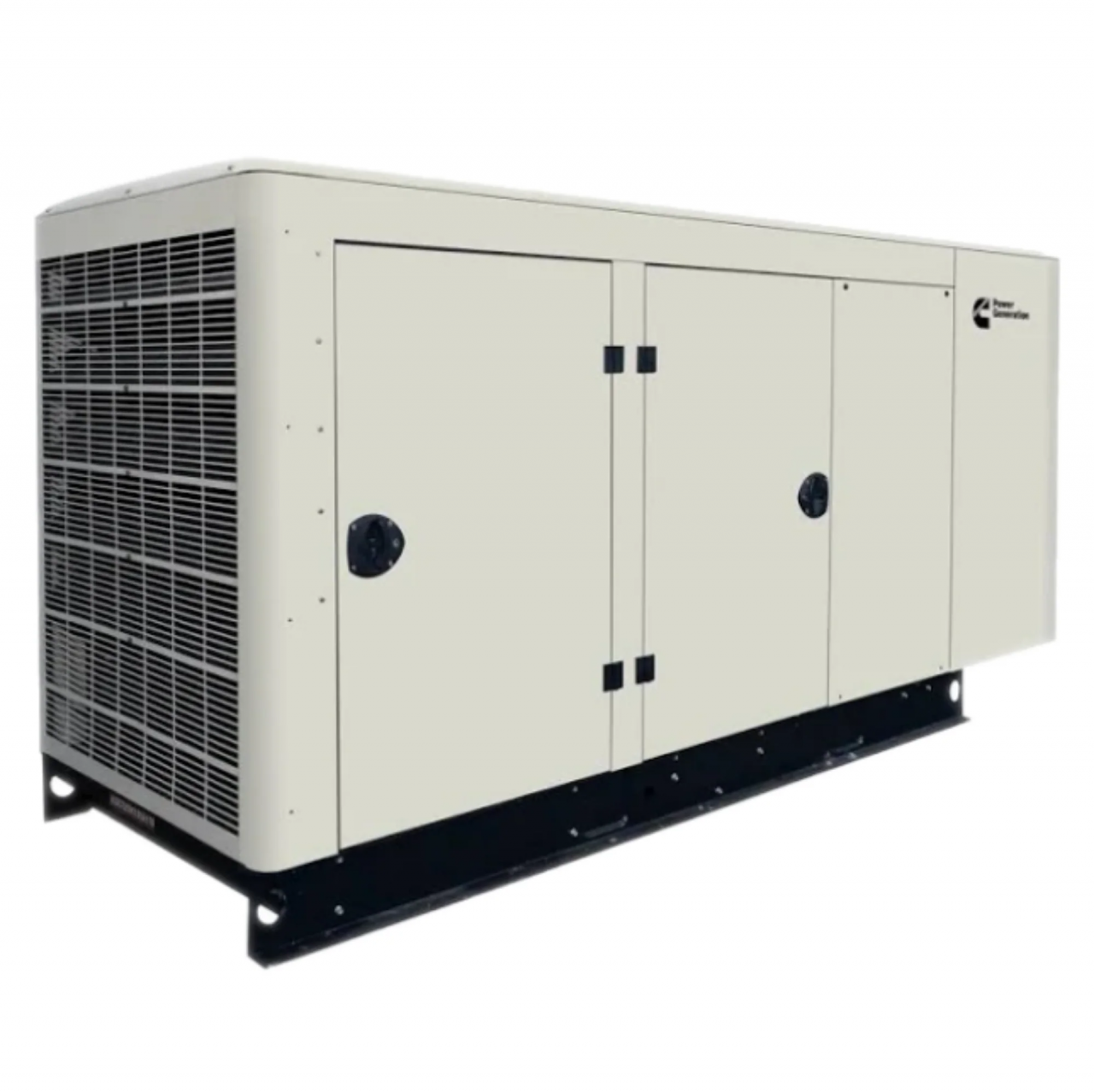

Cummins RS100 Quiet Connect 100kW 120/240V 3-Phase Liquid-Cooled Commercial Generator

The Cummins RS100 Natural Gas and LP Propane Generator for Home and Small Business backup. The 3 phase 120/240-volt generator has a robust design and undergoes rigorous testing. Designed to operate under extreme conditions, the generator starts in temperatures down to -40° F. The RS100 is code compliant with U.S. EPA emissions requirements, meets California emissions standards, is UL-2200 listed, IBC Seismic, and NFPA 110 Capable with the correct accessories and installation.

Cummins includes a 2-Year base warranty.

Cummins 100kW Generator

The 100kW Generator has a flexible exercise mode to fit the needs of any installation. Set the generator to exercise at specific times, on a regular schedule, for as little as 2 minutes every six months.

An advanced powder-coated sound-level 1 aluminum enclosure reduces noise to 73dBA and withstands wind loads up to 180 MPH in accordance with ASCE 7-10. Hinged doors simplify access for service and maintenance.

Cummins RS Series Generators feature PowerCommand 1.1 Electronic Control for automatic starts and stops, output metering, auto-shutdown for fault detection, and NFPA 110 Level 1 compliance. PowerCommand regulates voltage to ±1% and frequency to 0.25% at 60 Hertz.

Cummins Quiet Connect Generator

Cummins RS100 generator engine is a natural gas/propane engine. Fuel type is selectable in the field.

The 5.9 Liter turbocharged and aftercooled in-line 6-cylinder engine has a cast-iron block. Starting system is a 12-volt negative ground with a 850-Amp capacity down to 0° F. Uses a spin-on oil filter with relief valve. Rated speed is 1800 RPM.

EPA and CA/MA Compliant: For Sale in All 50 States.

Features:

Cummins Quiet Connect

• For light commercial applications with 120/240V 3-Phase power

Powered By Cummins 5.9L Turbocharged Liquid-Cooled Engine

• 1800 RPM design provides reliability and fuel efficiency

Brushless CA Series Alternator

• Provides +/- 1% voltage and +/- 0.25% frequency regulation

• As close to utility power as you can get in a standby generator

Advanced Design Sound Attenuated Aluminum Enclosure

• Aesthetically appealing withstands winds up to 180 MPH

• One of the quietest generators of its kind (71dB at 7M)

PowerCommand Electronic Control

• Provides industry-leading self-diagnostic capabilities

Flexible Exercise Mode

• Exercise at a time, frequency and duration that suits you

• Reducing unnecessary fuel consumption, emissions and noise

Coolant Heater For Extreme Environmental Conditions (Included)

• Factory installed, Allows for cold weather starts down to -40 degrees F

Automatic Transfer Switch (Sold Separately)

Overview:

• Product Category: Standby Generator
• Generator Features: Low Oil Alert/Shutdown
• Product Weight: 2830 lbs
• Length: 118-11/16"
• Width: 40"
• Height: 58-5/16"

Specifications:

• Voltage: 120, 240V
• Frequency: 60 Hz
• Running Wattage: 100,000 Watts
• Fuel Type: Liquid Propane, Natural Gas
• NG Power Capacity: 100,000 Watts
• LP Power Capacity: 100,000 Watts
• NG Fuel Consumption @ 50% Load: 805 ft3/hr
• NG Fuel Consumption @ 100% Load: 1,318 ft3/hr
• LP Fuel Consumption @ 50% Load: 9 gallons/hr
• LP Fuel Consumption @ 100% Load: 14 gallons/hr
• Amperage: 301A
• Decibel Rating @ 7m: 71 dbA
• Enclosure Material: Aluminum
• Mounting Pad: Concrete (Not Included)
• Cooling Type: Liquid Cooled

Engine:

• Engine Brand: Cummins
• Starting System: 12v Auto Start
• Cubic Capacity: 5900 CC
• RPM: 1800 RPM
• Low Oil Alert/Shutdown: Yes

Product Assurance:

• Certifications: UL
• Warranty: 2 Year
