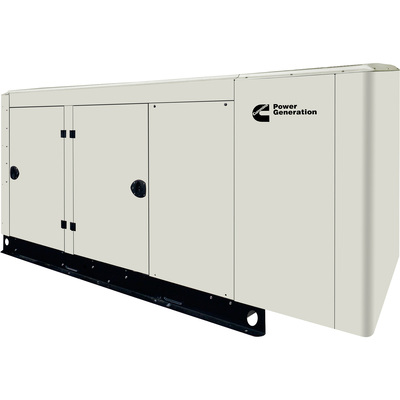

Cummins RS80 Quiet Connect 80kW 120/240V Single-Phase Liquid-Cooled Commercial Generator

The Cummins RS80 Natural Gas and LP Propane Generator for Home and Small Business backup. The 120/240-volt generator has a robust design and undergoes rigorous testing. Designed to operate under extreme conditions, the generator starts in temperatures down to -40° F. The RS80 is code compliant with U.S. EPA emissions requirements, meets California emissions standards, is UL-2200 listed, IBC Seismic, and NFPA 110 capable with the correct accessories and installation.

Cummins includes a 2-Year base warranty.

Cummins 80kW Generator

The 80kW Generator has a flexible exercise mode to fit the needs of any installation. Set the generator to exercise at specific times, on a regular schedule, for as little as 2 minutes every six months.

An advanced, powder-coated aluminum sound level 1 enclosure withstands wind loads up to 180 MPH in accordance with ASCE 7-10. The level 1 enclosure reduces noise sound to 73dBA. Service doors simplify access for service and maintenance.

Cummins RS Series Generators feature PowerCommand 1.1 Electronic Control for automatic starts and stops, output metering, auto-shutdown for fault detection, and NFPA 110 Level 1 compliance. PowerCommand regulates voltage to ±1% and frequency to 0.25% at 60 Hertz.

Cummins Quiet Connect Generator

Cummins RS80 generator engine is a natural gas/propane engine. Fuel type is selectable in the field.

The 5.9 liter turbocharged and aftercooled in-line 6-cylinder engine has a cast-iron block. Starting system is a 12-volt negative ground with a 850-Amp capacity down to 0° F. Uses a spin-on oil filter with relief valve. Rated speed is 1800 RPM.

EPA and California Emissions: For Sale in California

Features:

Cummins Quiet Connect

• Great for home and light commercial applications

Powered By Cummins 2.4L Turbocharged Liquid-Cooled Engine

• 1800 RPM design provides reliability and fuel efficiency

Brushless CA Series Alternator

• Provides +/- 1% voltage and +/- 0.25% frequency regulation

• As close to utility power as you can get in a standby generator

Advanced Design Sound Attenuated Aluminum Enclosure

• Aesthetically appealing withstands winds up to 180 MPH

• One of the quietest generators of its kind (70.5dB at 7M)

PowerCommand Electronic Control

• Provides industry-leading self-diagnostic capabilities

Flexible Exercise Mode

• Exercise at a time, frequency and duration that suits you

• Reducing unnecessary fuel consumption, emissions and noise

• Coolant Heater For Extreme Environmental Conditions (Included)

• Factory installed, Allows for cold weather starts down to -40 degrees F

Automatic Transfer Switch (Sold Separately)

Overview:

• Product Category: Standby Generator
• Generator Features: Low Oil Alert/Shutdown
• Product Weight: 2782 lbs
• Length: 118-11/16"
• Width: 40"
• Height: 58-5/16"

Specifications:

• Voltage: 120, 240V
• Frequency: 60 Hz
• Running Wattage: 80,000 Watts
• Fuel Type: Liquid Propane, Natural Gas
• NG Power Capacity: 80,000 Watts
• LP Power Capacity: 80,000 Watts
• NG Fuel Consumption @ 50% Load: 679 ft3/hr
• NG Fuel Consumption @ 100% Load: 1,084 ft3/hr
• LP Fuel Consumption @ 50% Load: 7 gallons/hr
• LP Fuel Consumption @ 100% Load: 12 gallons/hr
• Amperage: 333A
• Decibel Rating @ 7m: 70.5 dbA
• Enclosure Material: Aluminum
• Mounting Pad: Concrete (Not Included)
• Cooling Type: Liquid Cooled

Engine:

• Engine Brand: Cummins
• Starting System: 12v Auto Start
• Cubic Capacity: 2400 CC
• RPM: 1800 RPM
• Low Oil Alert/Shutdown: Yes

Product Assurance:

• Certifications: UL
• Warranty: 2 Year
