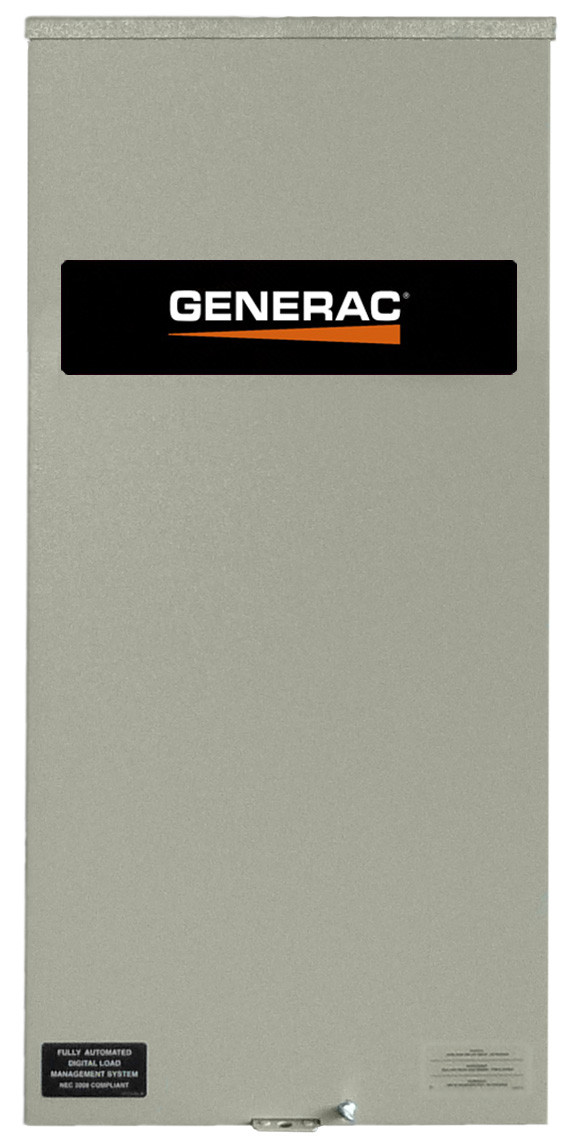

Generac RTSW400A3 400 Amp 120/240V Single Phase SE Rated Transfer Switch

With the RTS Series transfer switch, you can choose to cover every circuit all the time or only essential circuits when paired with a generator sized to your application. RTS open transition transfer switches are ideal for residential, commercial and light industrial applications. Standard RTS transfer switches feature NEMA 3R enclosures for indoor or outdoor use.

Details

• 400 Amp Single phase
• 120/240v Configuration
• Service Rated
• Integrated Load Shed Module for smart load management
• Aluminum Enclosure

Features:

• 400-Amp Automatic Smart Transfer Switch
  • For Generac Evolution
• Digital Power Management Technology (DPM)
  • Allows your generator to work smarter, not harder
• Be Smart....Get More Out Of Your Generator
  • Cycles power on and off as needed for different appliances
• Manage Up To (4) Individual HVAC Loads - No Hardware Required
  • Great for homes with multiple air conditioners (24 VAC controlled)
• Up To (8) Smart Management Modules (SMM) (Sold Separately)
  • Frequency (Hz) monitoring design, no control wire required
  • Versatile design, easily prioritize loads and lock-out non-essential loads
• Service Entrance Rated
  • Installs between main meter and service panel
• NEMA 3R Indoor/Outdoor Rated
  • Aluminum, wall mountable weather-proof enclosure
  • Electrostatically applied and baked powder coating paint (gray)
• Tech Spec Summary: Only For Use with Generac Generators
  • Load Transition Type: Open Transition
  • Withstand Rating: 22,000 Amps --- Lug Range: #4 or 2-250 MCM
• 5-Year Limited Warranty - UL Listed

Overview:

• Transfer Switch Style: Service Disconnect
• Product Weight: 140 lbs
• Depth: 10"
• Width: 22"
• Height: 48"

Specifications:

• Voltage: 120, 240V
• Frequency: 60 Hz
• Electrical Phases: 1
• Max Generator Input: 400A
• Max Utility Input: 400A
• Enclosure Material: NEMA 3R

Product Assurance:

• Certifications: UL
• Warranty: 5 Year
