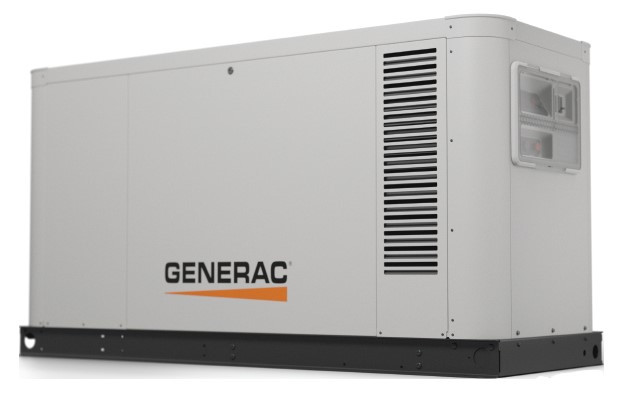

Generac XG04845CNAX 48kW Protector XG 3 Phase Standby Generator

Price:

US $8,606.99

SKU:

XG04845CNAX

Brand:

Generac

Condition:

New

Availability:

In Stock

Product Description

Generac XG04845CNAX Protector XG Series 48kW (120 / 240V) Three-Phase Liquid Cooled Multi-Fuel Standby Generator with Cellular Mobile Link (Configurable) (48-State)

*Generator Comes With Generac 9901 120/208V 3-Phase Voltage Configuration Cartridge*

INNOVATIVE DESIGN & PROTOTYPE TESTING are key components of GENERAC’S success in “IMPROVING POWER BY DESIGN.” But it doesn’t stop there. Total commitment to component testing, reliability testing, environmental testing, destruction and life testing, plus testing to applicable CSA, NEMA, EGSA, and other standards, allows you to choose GENERAC POWER SYSTEMS with the confidence that these systems will provide superior performance.

MOBILE LINK® CONNECTIVITY: Standard cellular connectivity included with every XG generator, Mobile Link allows users to monitor generator status from anywhere in the world using a smartphone, tablet, or PC. Easily access information such as the current operating status and maintenance alerts. Users can connect an account to an authorized service dealer for fast, friendly, and proactive service. With Mobile Link, users are taken care of before the next power outage.

SOLID-STATE, FREQUENCY COMPENSATED VOLTAGE REGULATION. This state-of-the-art power maximizing regulation system is standard on all Generac models. It provides optimized FAST RESPONSE to changing load conditions and MAXIMUM MOTOR STARTING CAPABILITY by electronically torque-matching the surge loads to the engine. Digital voltage regulation at ±1%.

POWER ZONE 410 CONTROLLER The Generac Power Zone® Digital Control Platform is a fully integrated and multipurpose family of controllers for Generac’s generator systems. NFPA 110 Capable. Controller-Selectable Fuel Type - Natural Gas or Propane Vapor. 1-Phase or Configurable 3-Phase Voltage Output - See Spec Sheet for Additional Standard Controller Features.

5-year/2,000 Hour limited warranty with extended warranty options are available
We are proud of our innovative product design, high quality and first-class reliability so we stand behind them with a strong 5, 7 or 10-year limited

Aluminum Enclosure, Aluminum enclosures provide enhanced durability, and are corrosion resistant – ideal for homes located in coastal and salt-ware environments.

Quiet-Test™ Self-Test Mode: Runs at a lower, quieter RPM for a five-minute test, to ensure the system is running properly while consuming less fuel. Quiet-Test Self-Test Mode can be programmed to run weekly, biweekly, or monthly

TruePower™ Technology: Delivers best-in-class power quality with less than 5% total harmonic distortion for clean, smooth operation of sensitive electronics and appliances..

OPTIONAL FIELD-INSTALLABLE FEATURES

Available as field-installable kits

Generator Ready-Status Indicator
Emergency Stop
NFPA 110 Control & Annunciation
Cold Weather Operation Aids
Additional Level 2 Sound Reduction
Extreme High Wind
Provisions for Rooftop and Elevated Mounting
Base frame Block-off
Engine Fluid Containment
Seismic Anchoring

Features:

48kW ProtectorXG Series Premium-Grade Standby Generator

Non-SCAQMD Compliant - Not For Sale In CALIFORNIA

For small commercial buildings with 3-Phase service

Configurable 3-Phase Voltage Output*

Includes 120/240V 3-Phase Voltage Configuration Cartridge (VCC)

All Voltages Require Generator CB Kit (Sold Separately)

Runs Off Natural Gas or LP Fuel Source

Now controller is selectable for easier installation

Mobile Link and Fleet Standard Cellular Connectivity

Monitor generator status on a smart phone, tablet or PC

5-Year Limited Warranty + 24/7-365 Customer Support

Have your questions answered when it's convenient for you

True Power Electrical Technology

Less than 5% Total Harmonic Distortion (THD) for utility grade power

Automatic Digital Voltage Regulation (+/-1%)

Allows for faster response time and maximum motor starting ability

Quiet-Test

Low-speed exercise mode for quieter weekly tests

Power Zone 410 Controller

LCD Display provides service and maintenance intervals

NFPA 110 Capable

4.5L Inline 4-Cylinder, Automotive-Style Engine

Operates at half the speed of other engines (1800 vs 3600 RPM)

Hydraulic lifter helps minimize maintenance costs

Tough, Durable All-Aluminum Sound Attenuated Enclosure

Rhino Coat powder-coated finish keeps enclosure protected from the elements

Lockable, external viewing window for quick status check

Automatic Shutdown Safety Feature

High coolant temp, low coolant, low oil pressure and overspeed

Installation Flexibility*

Can be installed within 18" of a building; *Always check local building codes

Transfer Switch (Sold Separately)

Customize your system based on your actual application

Additional Features:

Built-in Battery Charger (Battery Not Included)

Generac Standby Generators and Engines - Built In The USA*

Built in the USA using domestic and foreign parts

Overview:

Product Category: Standby Generator
Generator Features: Low Oil Alert/Shutdown
Product Weight: 1644 lbs
Length: 83-3/8"
Width: 35"
Height: 46"

Specifications:

Voltage: 120, 240V
Frequency: 60 Hz
Running Wattage: 48,000 Watts
Fuel Type: Liquid Propane, Natural Gas
NG Power Capacity: 48,000 Watts
LP Power Capacity: 48,000 Watts
NG Fuel Consumption @ 50% Load: 336 ft3/hr
NG Fuel Consumption @ 100% Load: 604 ft3/hr
LP Fuel Consumption @ 50% Load: 4 gallons/hr
LP Fuel Consumption @ 100% Load: 7 gallons/hr
Amperage: 144A
Enclosure Material: Aluminum
Mounting Pad: Concrete (Not Included)
Cooling Type: Liquid Cooled

Engine:

Engine Brand: Generac
Starting System: 12v Auto Start
Cubic Capacity: 4500 CC
RPM: 1800 RPM
Low Oil Alert/Shutdown: Yes

Product Assurance:

Certifications: UL
Warranty: 2 Year and 5 Year

Dimensions and Measurements

Height	46 in.
Length	83.4 in.
Product Weight	1644 lbs.
Width	35 in.

Included Components

Automatic Transfer Switch Included	No
Battery Included	No
Mounting Pad	Concrete (Not Included)

Characteristics and Features

Cooling Type	Liquid Cooled
Enclosure Material	Aluminum
Engine Brand	Generac
Generator Features	Low Oil Alert/Shutdown

Electrical and Operational Information

Amperage	144
Cubic Capacity	4500 cc
Electrical Phases	3
Frequency	60 Hertz
Fuel Type	Liquid Propane, Natural Gas, Dual-Fuel (LP/NG)
LP Fuel Consumption @ 100% Load	6.6 GPH
LP Fuel Consumption @ 50% Load	4.2 GPH
LP Power Capacity	48000
NG Fuel Consumption @ 100% Load	604 CFH
NG Fuel Consumption @ 50% Load	336 CFH
NG Power Capacity	48000
Output Voltage	120/240 VAC
RPM	1800
Running Wattage	48000
Starting System	12v Auto Start
Voltage	120, 240
