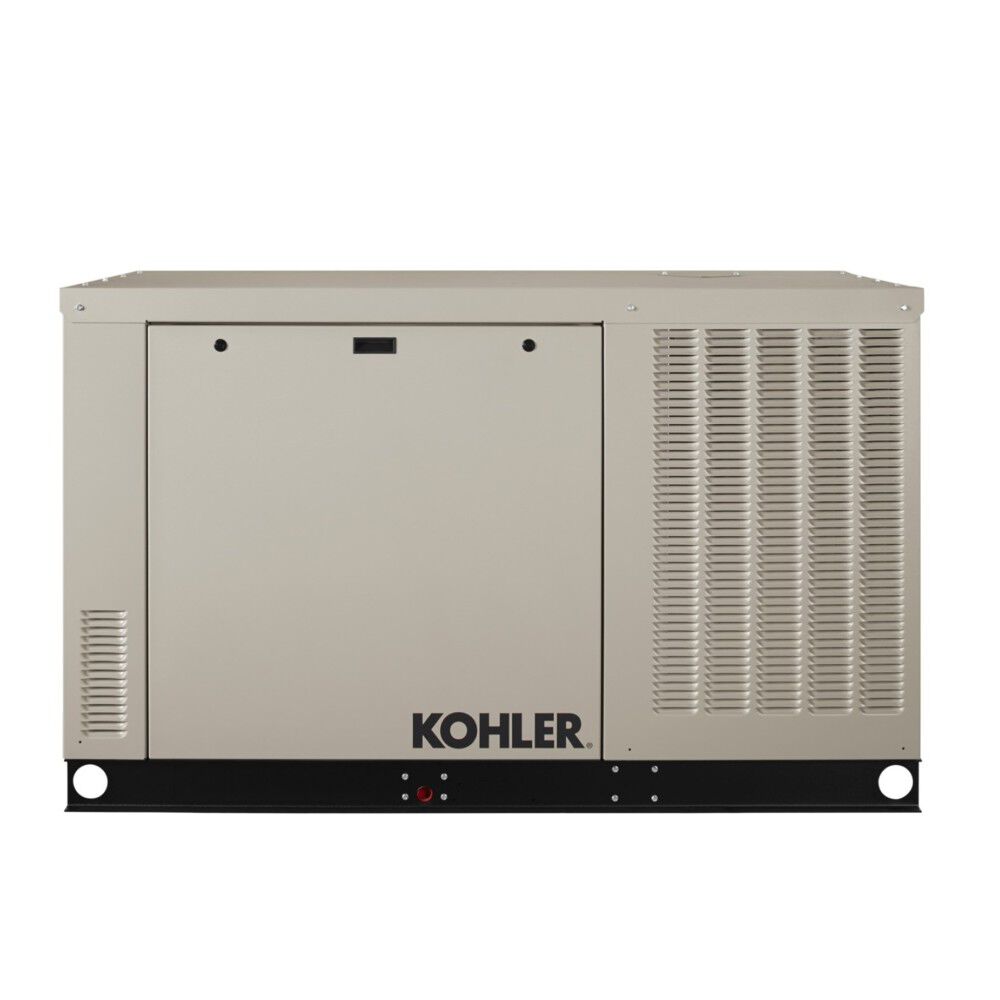

Kohler Power 24kW Dual Fuel 1-Phase Liquid Cooled Standby Generator 50-State with Block Heater

24kW LP/21kW NG  |   120/240 Volts  |   Single Phase  |   Quiet 60dBA Operation

Engine Block Heater  |   18-Inch to Home Install   |  181 MPH Wind Rating  |   RDC2 Controller

The Kohler 24kW Generator provides high quality power with advanced voltage and frequency regulation and low harmonic distortion. Neighborhood friendly operation at 60 dBA and 52 dBA during exercise. The Liquid Cooled Kohler 2.2 Liter Inline 4 cylinder engine provides plenty of power at 1800 RPM. The electronic governor maintains frequency within 1%. From No Load to a Full Load Condition, Total Harmonic Distortion (THC) is less than 5%.

Features a factory installed thermostat controlled Engine Block Heater for regions that fall below 32° Fahrenheit.

Meets US EPA, California, and Massachusetts emissions requirements. UL-2200 Listed.

The 24kW Kohler Generator powers all the appliances for home or business including air conditioning, heating, lights, security, and office equipment. Seconds after an outage turns out the lights, the 24RCLA restores power. Runs on Natural Gas or Propane. Includes Kohler Home Energy Management.

Kohler's Premium Limited Warranty Covers Parts, Labor, and Travel for 5-Years/2000-Hours.

Made in the USA-The 24kW Kohler Generator is manufactured in the United States.

24kW Kohler Generator Features

• Aluminum Sound Enclosure + Silencer
• Factory Installed Engine Block Heater
• UL-2200 Listed
• GFCI Service Outlet 120/240 Volt
• Integral Vibration Isolation
• Oil Drain Extension
• NEC Prime Mover Shutdown Switch
• Remote Monitoring & Control of Generator & ATS System
• RDC2 Controller + Built-In Battery Charger

24kW Generator RDC2 Digital Controller

The digital controller manages all aspects of the standby generator system.

Some controller features apply only to use with an RXT Transfer Switch. Please see the specifications for RDC2 Controller Features and the Owner Manual for a detailed explanation and implementation of controller features.

Main RDC2 Features Include:

• Membrane Keypad
• LED Indicators
• 2 Line Backlit LCD Screen with contrast control.
• Digital isochronous governor maintains speed at all loads.
• Digital voltage regulation ±1% from no load to full load
• Programmable exerciser
• Ethernet connector
• Diagnostic Messages and Maintenance Reminders
• ATS Status and Control (this feature requires an RXT transfer switch)
• Programmable Interface Module (PIM) Status

Overview:

• Product Category: Home Standby Generator
• Generator Features: Low Oil Alert/Shutdown
• Product Weight: 1260 lbs
• Length: 74"
• Width: 32-7/8"
• Height: 46"

Specifications:

• Voltage: 120, 240V
• Frequency: 60 Hz
• Running Wattage: 24,000 Watts
• Fuel Type: Liquid Propane, Natural Gas
• NG Power Capacity: 21,000 Watts
• LP Power Capacity: 24,000 Watts
• NG Fuel Consumption @ 50% Load: 199 ft3/hr
• NG Fuel Consumption @ 100% Load: 301 ft3/hr
• LP Fuel Consumption @ 50% Load: 2 gallons/hr
• LP Fuel Consumption @ 100% Load: 3 gallons/hr
• Amperage: 100A
• Decibel Rating @ 7m: 61 dB
• Enclosure Material: Aluminum
• Mounting Pad: Concrete (Not Included)
• Cooling Type: Liquid Cooled

Engine:

• Engine Brand: Kohler
• Starting System: 12v Auto Start
• Cubic Capacity: 2200 CC
• Horsepower: 36 (NG) / 40 (LP)
• RPM: 1800 RPM
• Low Oil Alert/Shutdown: Yes

Product Assurance:

• EPA Compliant
• Approved for commercial use
• Warranty: 5 Year Commercial Engine and 5 Year Residential Engine
