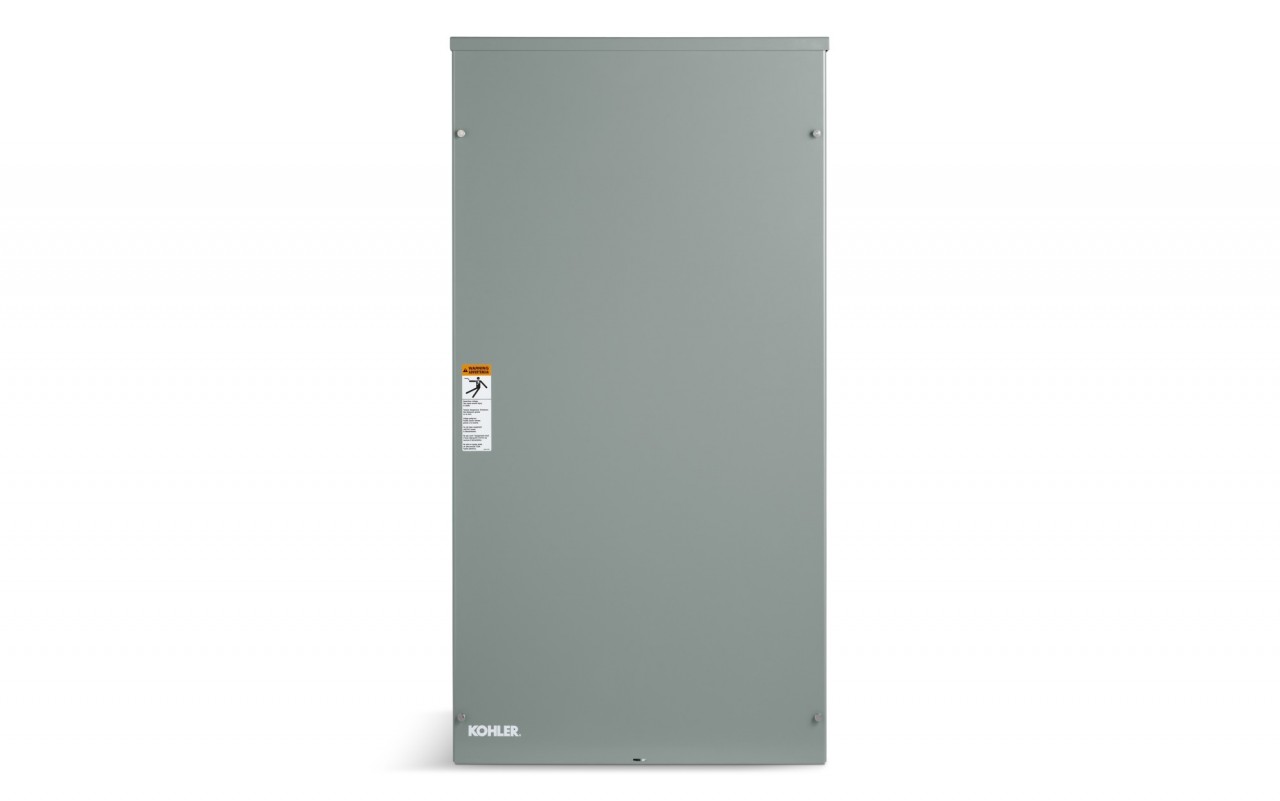

Kohler RDT-CFNC-0100A-QS7 100 Amp 120/240V NEMA 3R Automatic Transfer Switch

100-Amp  |   120/240 Volts Single Phase  |   UL-1008 & UL-508  |   NEMA 3R Indoor/Outdoor Enclosure

The RDT 100 Amp Automatic Transfer Switch is a 2-Pole, 3-Wire (solid neutral) open transition transfer switch rated for 100 Amps at 120/240 Volts. The NEMA 3R Aluminum enclosure is suitable for indoor or outdoor installation. 100 Percent Equipment Rated without derating. The 100 Amp Transfer Switch Contactor is electrically and mechanically interlocked with a double-throw interlocked design.

The 100-Amp Automatic Transfer Switch has a MPAC 500 Controller

MPAC 500 Controller Features

• User Friendly Interface
• Source available and contactor position indicators
• LED Indicators for faults
• Engine Start Contact starts generator engine
• Load Control Contact adds 5 minute delay to selected loads
• Test Button
• Weekly 20-Minute Generator Exercise with or without load
• Single Phase Voltage Sense on both Sources
• Line-to-Line Frequency sense
• Fixed Time Delays

100 Amp Transfer Switch Features

• NEMA 3R Indoor/Outdoor Aluminum Enclosure
• 2 Pole Single Phase Open Transition Switch
• UL-1008, UL-508 Listed
• Engine Start Time Delay
• Engine Cooldown Delay
• 20 Minute Weekly Exercise
• Electrically & Mechanically Interlocked Contactor
• Manual Contactor Operation for Maintenance
• Utility and Generator Source Available Indicators

Specifications
