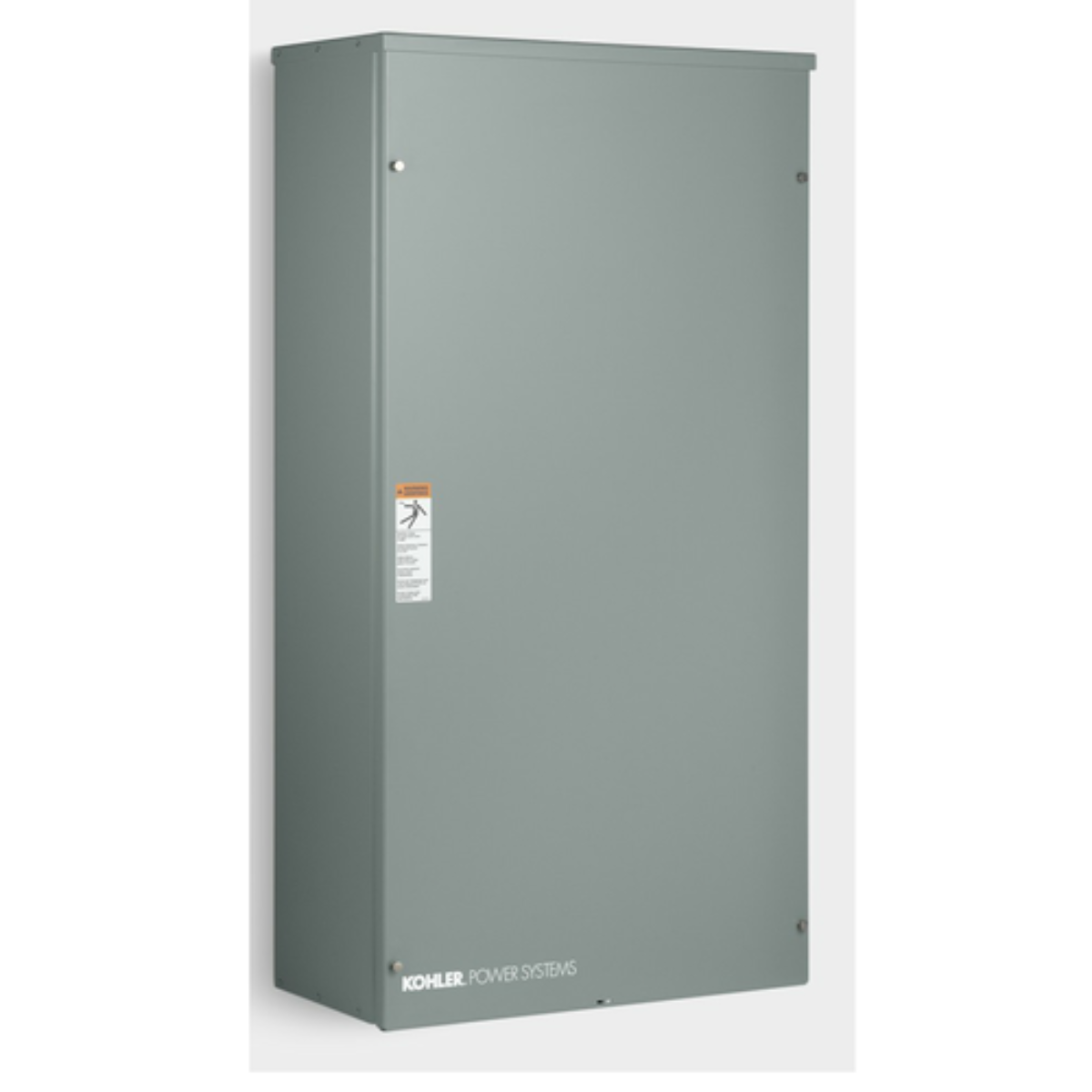

Kohler RDT-CFNC-0100B 100 Amp 120/240V Nema 3R Automatic Transfer Switch with 16 Circuit Load Center

The RDT 100 Amp Transfer Switch is a 2-Pole, 3-Wire (solid neutral) open transition transfer switch rated for 100 Amps at 120/240 Volts. The NEMA 3R Aluminum enclosure is suitable for indoor or outdoor installation. 100 Percent Equipment Rated without derating. The 100 Amp Automatic Transfer Switch Contactor is electrically and mechanically interlocked with a double-throw interlocked design.

Features:

• Prewired Square D type QO load center
  • 100 amp load centers use up to 16 circuit breakers - not included
• Standard Features
  • UL listed
  • Two-pole, single-phase, open-transition transfer switch
  • Double throw inherently interlocked design
  • Solid Neutral
  • 220/240 VAC, 50/60 Hz (jumper)
  • Contractor manually operable for maintenance purposes
  • NEMA 3R (outdoor) enclosure
• MPAC™ 500 Controller Features
  • User-friendly interface and easy-to-find international symbols
  • LED indication of system faults
  • Test button (with or without load)
  • Exercise set button
  • Single-phase voltage sensing on both sources
  • Line-to-line frequency sensing
  • Fixed time delays
• 5-Year Limited Warranty

Overview:

• Transfer Switch Style: Select Circuit
• Product Weight: 18 lbs
• Depth: 7"
• Width: 16-3/8"
• Height: 36-1/8"

Specifications:

• Voltage: 120/240V
• Frequency: 60 Hz
• Electrical Phases: 1
• Max Generator Input: 100A
• Max Utility Input: 100A
• Enclosure Material: NEMA 3R

Product Assurance:

• Certifications: UL
• Warranty: 5 Year
