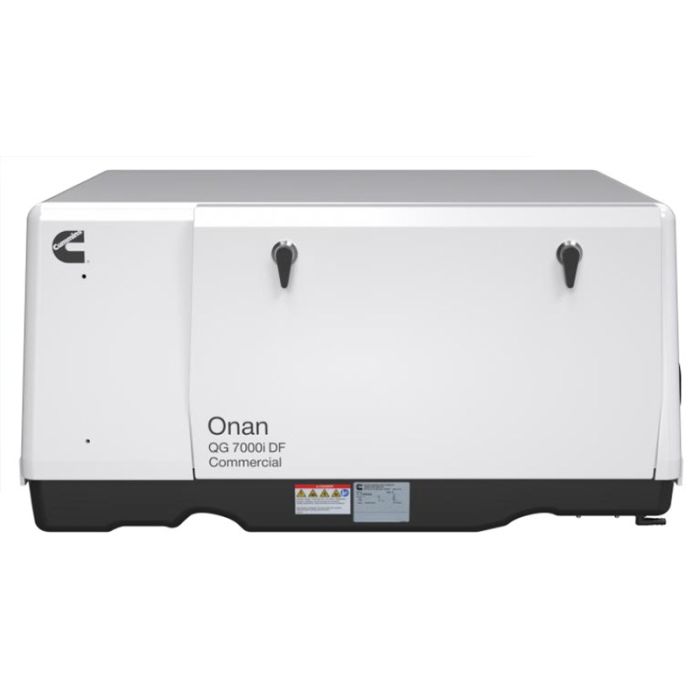

Cummins Onan QG 7000i DF Dual Fuel Commercial Mobile Generator 7HGLCB-8315
Product Description
Cummins Onan 7HGLCB-8315 QG 7000i DF Dual Fuel Commercial Mobile Generator | 7 kW, 120-240 Volt, EFI
The legend continues as the Onan Commercial Mobile generator family grows, bringing all the power you need no matter where you go.
The Onan QG 7000i DF is the latest addition to Cummins’ new generation of inverter commercial mobile generators. Outfitted with a variable speed engine and PMA alternator, this generator has low noise and vibration, so you won’t disrupt your neighbors or be jolted awake in the middle of the night.
The QG 7000i DF can be installed for LP or gasoline fueled RVs and has a clean exhaust producing minimal smoke or smell. It also produces clean, consistent electricity that keeps your electronics safe from power surges in a storm when they are plugged in.
This generator also has electronic fuel injection (EFI), which means you don’t have to stop for fuel as often. EFI also means it requires less maintenance so you can spend more time enjoying the journey.
You can also enjoy the convenience of having your QG 7000i DF fully integrated into your coach’s control interface for easy operation and monitoring.
Features and Benefits
- Computer-controlled variable speed operation matches engine speed to load demand, minimizing noise level and vibration
- Dual fuel system allows gasoline or liquid propane vapor providing installation flexibility
- No fuel return line necessary - EFI gasoline EVAP capable
- High power quality with inverted electrical output for sensitive RV loads
- J1939 communications
- Designed to operate in high ambient temperature conditions with dual cooling fans
- Semi focalized isolation system to minimize vibration
- Integrated design with enclosed muffler for easy installation
- Self-diagnostic capability to simplify troubleshooting
- Runs two air conditioners with power to spare
- 3-year limited warranty
- Lightest weight 7kW installed generator set in the market
- Low fuel consumption
- Excludes DC battery charging
Product
| Manufacturer | Cummins |
|---|---|
| SKU | 7HGLCB-8315 |
| Model Number | A079U365 |
| Alternate Model Number | QG7000i DF |
| Generator Grade | Commercial |
| Generator Style | Commercial Mobile Generator |
| Special Features | Dual Fuel |
Engine Details
| Engine/Motor Brand | Cummins |
|---|---|
| Fuel Type | Bi-Fuel: LP & Gas |
| Starting System | Electric |
| Horsepower | 13.1 HP |
| Engine/Motor Type | 1-Cylinder, 4-Cycle, OHV, Electronic Fuel Injected |
| Displacement | 548 cc |
| Engine RPM | 2800 RPM |
| Generator RPM | 2800 RPM |
| Fuel Cons. @ 50% Ld | 0.6 Gallons/Hour |
| Fuel Cons. @ 100% Ld | 0.9 Gallons/Hour |
| LP Consumption 50% Ld | 0.6 Gallons/Hour |
| LP Consumption 100% Ld | 1.1 Gallons/Hour |
| Fuel Induction System | Electronic Fuel Injection (Internal Pump, Included) |
| Lubrication System | Splash |
| Engine Governor | Electronic |
| Operational Volume (dB @10ft) | 69.0 |
| Operational Volume (dB @50ft) | 60.0 |
| Auto Fuel Shut-Off Valve | Yes |
| Muffler/Exhaust | Enclosed Spark-Arrestor |
| Evaporative Emissions Control Equipped Model | Yes - Generator is EVAP or evaporative emissions compliant. Evaporative emissions controlled models are required for applications using a fuel tank separate from the vehicle propulsion engine's onboard fuel storage system. |
| Altitude Affected | Yes - Call For More Information |
Accessories
| Remote Panel | Add At Checkout |
|---|---|
| Wire Harness | Add At Checkout |
| Vibration Isolators | Yes |
| Battery For Electric Start | Not Included |
Warranty
| Warranty | 2 Year (Limited) |
|---|
Other Information
| Weight (Lbs.) | 201 |
|---|---|
| Ship Weight (Lbs.) | 241 |
| Free Shipping | Yes |
| Dimension No Wheel Kit | 22.2"W x 33.6"L x 16.7"H |
| Agency Compliance | CARB (California), EPA, National Park Approved |
| Stk. Itm | No |
Generator Details
| Surge Start Watts | 7,000.0 |
|---|---|
| Continuous Rated Watts | 7,000.0 |
| Prime Rating Watts | 7,000 |
| Phase | Single-Phase |
| Voltage | 120, 240 |
| Rated Amps @ Min Volt (Commonly 120v) | 58.3 |
| Rated Amps @ Max Volt (Commonly 240v 1-Phase) | 29.2 |
| Frequency | 60 Hz |
| Power Factor | 1.0 |
| Alternator | Permanent Magnet |
| Voltage Regulation | +/- 10% |
| Frequency Regulation | +/- 5% |
| Circuit Breakers | 30 Amp/30 Amp |
| Insulation | Class F |
