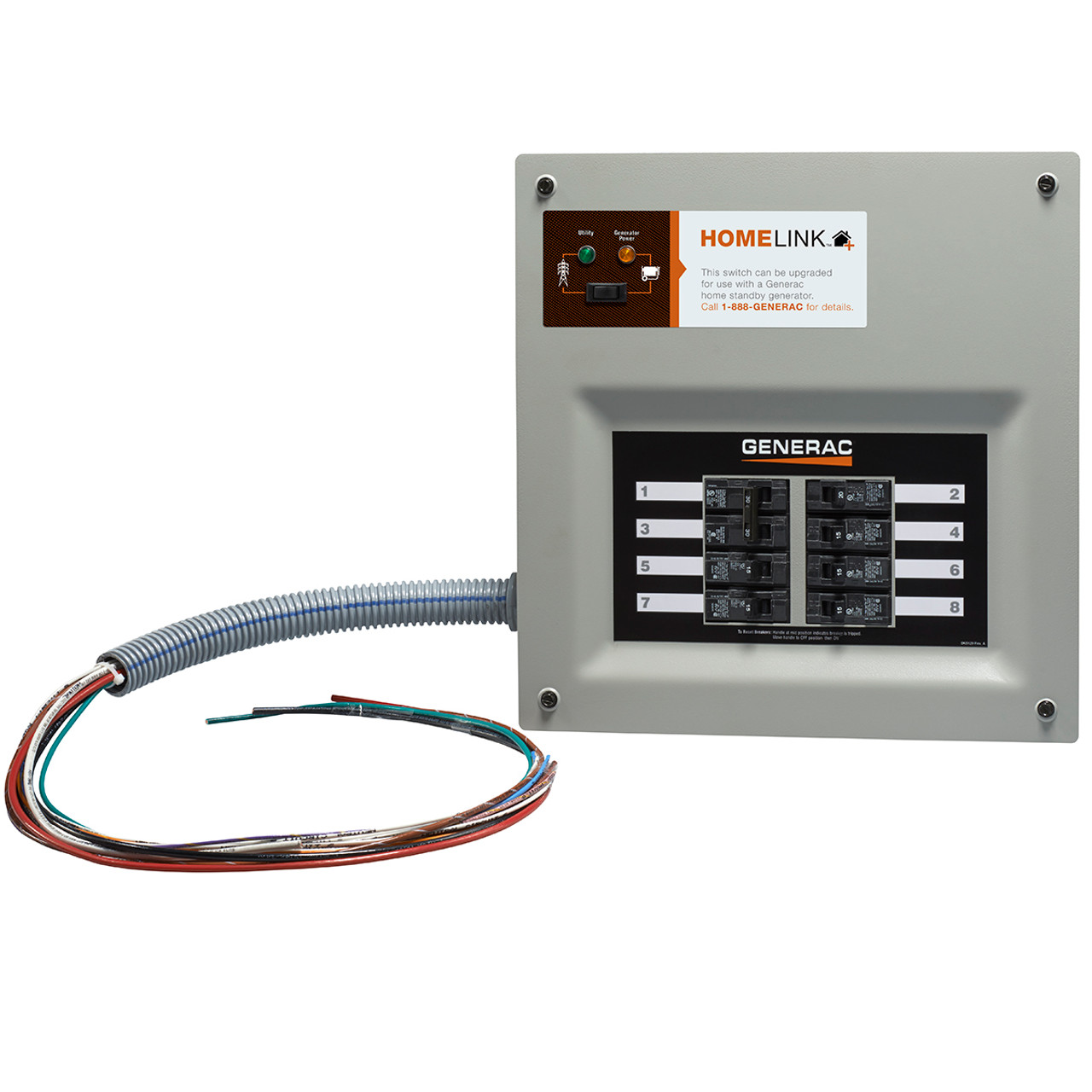

Generac 6854 30 Amp HomeLink 8 Circuits Pre-Wired Manual Transfer Switch with Aluminum PIB and Cord
Product Description
Generac 6854 30 Amp HomeLink 6-8 Circuits Pre-Wired Manual Transfer Switch with Aluminum Plug-in Box, Conduit & 30A Plug
Generac’s Home Link Upgradeable Manual Transfer Switch is a pre-wired electrical device that’s installed next to your home’s circuit panel. During an outage, it delivers power to hard-wired appliances (such as furnace, well pump and lights) with the push of a button, safely and easily eliminating the need for multiple extension cords. It comes standard with 8 circuits, expandable to 10 circuits. When you’re ready to install an automatic home standby generator, a certified electrician will change out the panel located in the Home Link with an automatic switch upgrade panel and new faceplate and it’s ready to be connected to a home standby generator (11 kW maximum).
Features
- Switch from utility to generator power with ease, using the innovative One Touch transfer button. This simple-to-use feature eliminates the intimidating, hard-to-flip breaker of the past. One Touch is also equipped with indicators lights to remove the guesswork of determining whether utility or generator power is in use.
- Pre-wired for the electrician, reducing the amount you pay for installation.
- Aluminum Inlet Box
- Flexible mounting options. Flush mount for a nice clean look in your finished basement or garage. Wall mount in areas you cannot flush mount, such as cinder blocks in your basement.
- To power your house with HomeLink™, you also need an inlet box and generator cord. Select HomeLink™ models include these items, providing you the complete system to back up your essentials.
Package Contents
- Power Cord
- Circuit Breakers
- Aluminum Inlet Box
- User's Manual
Specifications
| Weight | 27.2 |
| Dimensions | 15.4L x 15.8H x 4D |
| Model | HomeLink |
| Switch Amps | 30 Amps |
| Switch Circuits | 8 Circuits - Expandable to 10 Circuits |
| ATS Poles | 2 Pole |
| Consumer Warranty | 5 Year Limited Warranty |
| Shipping Dimensions | 7.8H X 18.7W X 25.8D |
| Shipping Weight | 27.5 lbs |
