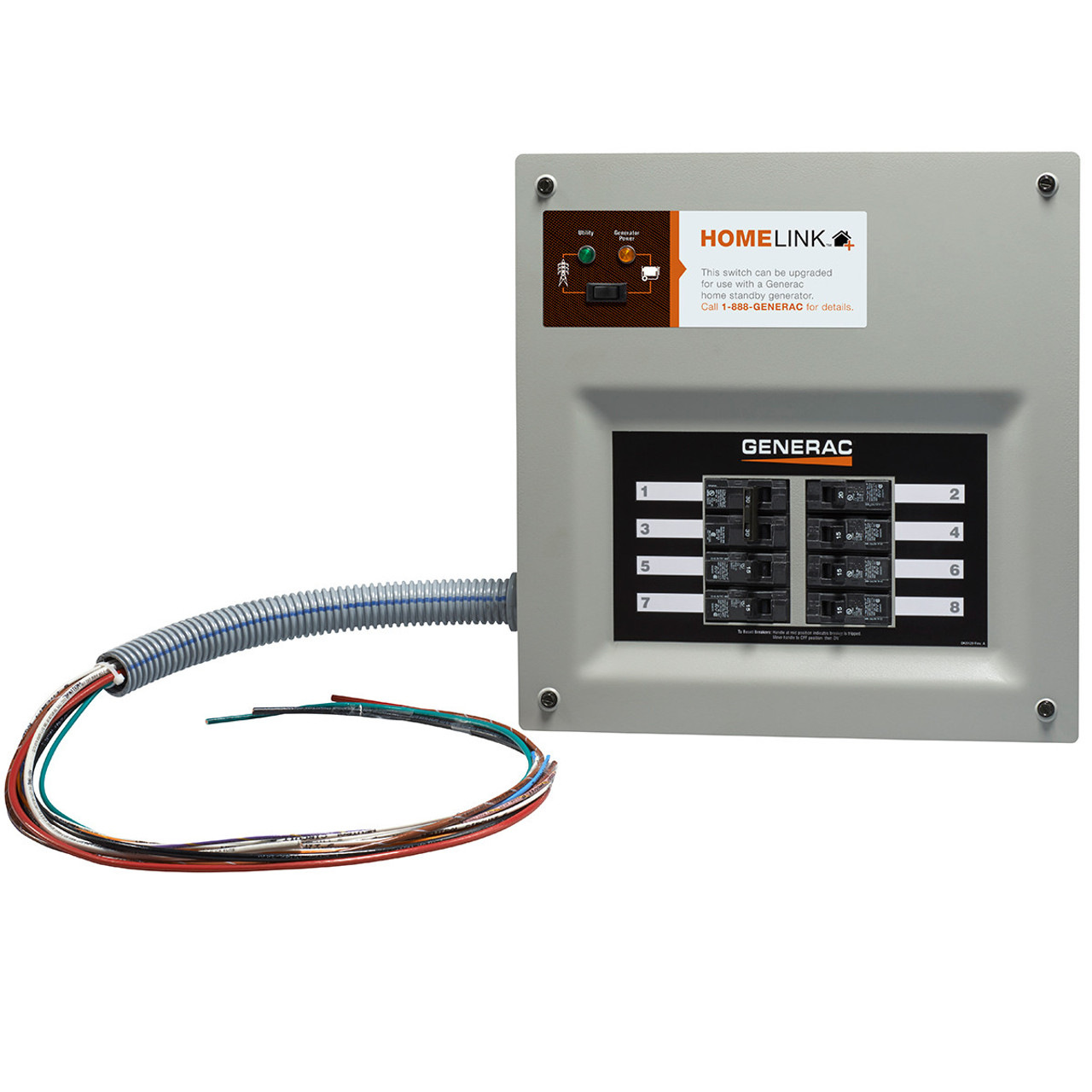

Generac 9855 50 Amp HomeLink 10-16 Circuits Pre-Wired Manual Transfer Switch with Inlet Box and 10 ft. Cord
Product Description
Generac 9855 50 Amp HomeLink 10-16 Circuits Pre-Wired Manual Transfer Switch with Aluminum Plug-in Box, Conduit & 30A Plug
Generac’s HomeLink™ manual transfer switch is compatible with generators starting at 5kW with a 50-Amp receptacle. The HomeLink™ manual transfer switch can safely deliver power to 10-16 of your most essential circuits, allowing you to back-up your refrigerator and freezer, gas furnaces, lights, small kitchen appliances and well pump.
Featuring our innovative OneTouch transfer button, HomeLink™ allows for quick changes between utility and generator power for ease of use during an outage. OneTouch also features two status lights to indicate whether utility or generator power is in use.
Features
- Interchangeable breakers make it easy to reconfigure or expand
- (1) 10' 50-Amp (CS6364) & NEMA 14-50P Power Cord
- (1) 50-Amp (CS6364) Aluminum Power Inlet Box (must be hardwired)
- Safely Power Hard-Wired Circuits
- The electricity you need to power your furnace, sump pumps, etc.
- From Manual to Automatic - Essential Circuit Coverage
- Field-upgradable to an automatic switch panel & new faceplate
- Includes 10 Total Circuits (Expands up to 16)
- (1) 30-Amp 2-Pole & (1) 20-Amp 2-Pole
- (2) 20-Amp 1-Pole & (2) 20-Amp 1-Pole Tandem
- Versatile Design & Flexible & Cost Effective Installation
- Can be used w/ GFCI and Non-GFCI portable generators
- Uses 1" standard, tandem, GFCI & AFCI breakers
- *Req's 50-Amp 2-Pole Breaker in Main Load Center (Not Included)
Package Contents
- Generac transfer switch
- Inlet box
- 10 ft. power cord
- Owners Manual
Specifications
| Voltage | 120/240 Single-Phase |
| Frequency | 60 Hertz |
| Rated Watts | 12000 Watts |
| Rated Amps | 50 Amps |
| Enclosure | NEMA 1R |
| Number of Circuit Breakers | 10 |
| Max Generator Input | 50 Amps |
| Maximum Wattage | 12000 Watts |
| UL Listed | Yes |
| Weight | 33 Pounds |
| Made in USA | Yes |
| Consumer Warranty | 5 Years |
| Product Length | 15.4 Inches |
| Product Width | 15.8 Inches |
| Product Height | 4 Inches |
| UPC | 696471071498 |
| Cord Length | 10 ft. |
| Gauge | 10g |
