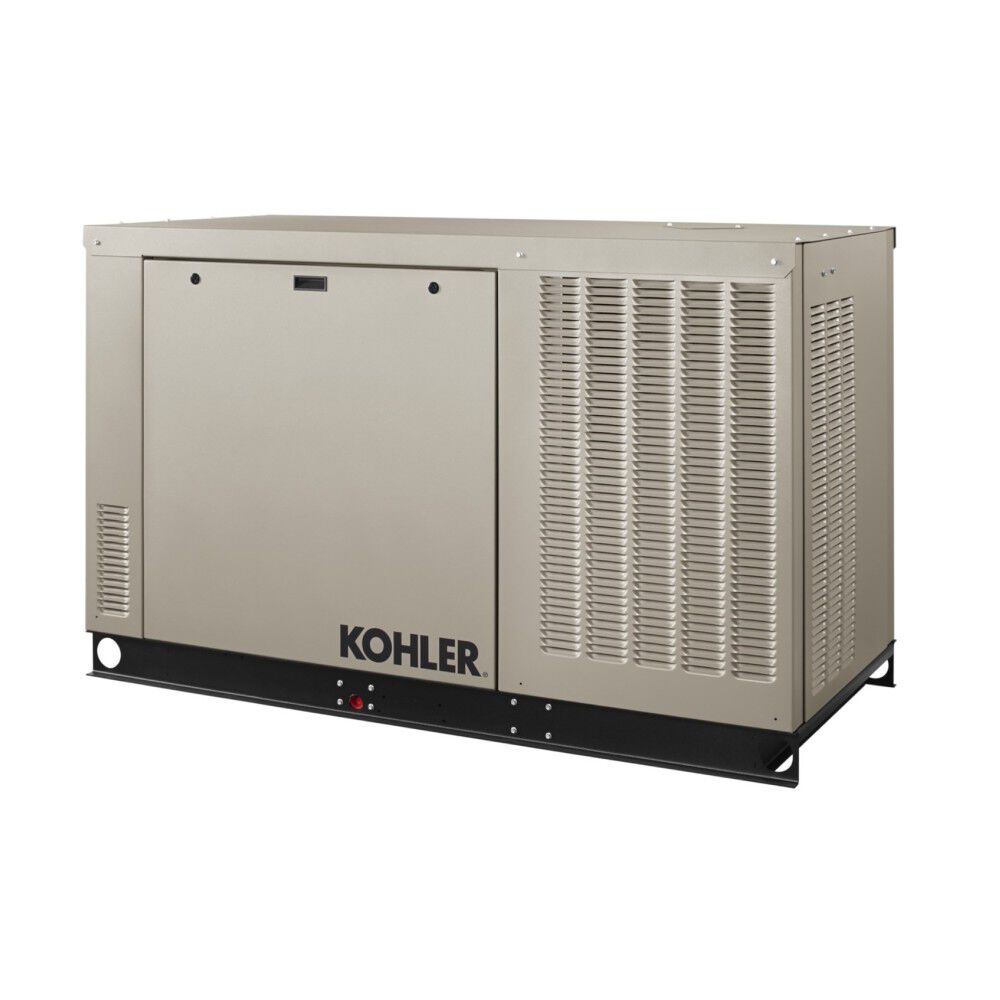

Kohler 24RCLA-QS3 24kW 120/240V 3 Phase Liquid Cooled Standby Generator
Product Description
Kohler Power 24,000 Watt (24kW) Dual Fuel 3-Phase Liquid Cooled Standby Generator (120 / 240V) 50-State
Ensure reliable backup power for large residential or small business needs with the 24 kW KOHLER® standby home generator. Designed for tough conditions, this standby home generator features an industrial-grade engine that kicks in automatically when the power goes out during storms or power failures. From central air systems to sump pumps and personal computers, the 24 kW KOHLER® generator keeps your home or business running smoothly, ensuring peace of mind during outages. Invest in a standby home generator that delivers powerful, uninterrupted performance whenever you need it most.
Features
- Operation speed 1800 rpm
- Premium power quality delivers exceptional digital voltage and frequency regulation along with extremely low levels of harmonic distortion to protect sophisticated electronics and appliances
- Extraordinary peak motor-starting capacity, with 24RCL at 37kVA at 240V
- This generator is a 50-state-rated unit that meets emissions standards set by the California Air Resources Board (CARB). Before purchasing or operating this generator, check all local city, county, or parish regulations and requirements that may have precedence over their State regulations.
- From 23 feet, the noise level is 61 dBA
- Powered by a Kohler KG2204 engine and connects directly to your propane or natural gas system, never needing to be refueled
- 24,000 running watts of power
Overview:
- Product Category: Home Standby Generator
- Generator Features: Low Oil Alert/Shutdown
- Product Weight: 1260 lbs
- Length: 74"
- Width: 32-7/8"
- Height: 45-1/8"
Specifications:
- Voltage: 120, 240V
- Frequency: 60 Hz
- Running Wattage: 23,000 Watts
- Fuel Type: Liquid Propane, Natural Gas
- NG Power Capacity: 21,000 Watts
- LP Power Capacity: 23,000 Watts
- NG Fuel Consumption @ 50% Load: 199 ft3/hr
- NG Fuel Consumption @ 100% Load: 301 ft3/hr
- LP Fuel Consumption @ 50% Load: 2 gallons/hr
- LP Fuel Consumption @ 100% Load: 3 gallons/hr
- Amperage: 70A
- Decibel Rating @ 7m: 61 dB
- Enclosure Material: Aluminum
- Mounting Pad: Concrete (Not Included)
- Cooling Type: Liquid Cooled
Engine:
- Engine Brand: Kohler
- Starting System: 12v Auto Start
- Cubic Capacity: 2200 CC
- Horsepower: 36 (NG) / 40 (LP)
- RPM: 1800 RPM
- Low Oil Alert/Shutdown: Yes
Product Assurance:
- EPA Compliant
- Approved for commercial use
- Warranty: 5 Year Commercial Engine and 5 Year Residential Engine
Plug Type:
(1) NEMA 5-20R - GFCI
Dimensions and Measurements
|
Height
|
45.1 in. |
|
Length
|
74 in. |
|
Product Weight
|
1260 lbs. |
|
Width
|
32.9 in. |
Included Components
|
Automatic Transfer Switch Included
|
No |
|
Mounting Pad
|
Concrete (Not Included) |
Characteristics and Features
|
Cooling Type
|
Liquid Cooled |
|
Enclosure Material
|
Aluminum |
|
Engine Brand
|
Kohler |
|
Generator Features
|
Low Oil Alert/Shutdown |
Electrical and Operational Information
|
Alternator
|
Brushless |
|
Amperage
|
70 |
|
Cubic Capacity
|
2200 cc |
|
Decibel Rating @ 7m
|
61 |
|
Electrical Phases
|
3 |
|
Frequency
|
60 Hertz |
|
Fuel Type
|
Liquid Propane, Natural Gas |
|
Horsepower
|
36, 40 |
|
LP Fuel Consumption @ 100% Load
|
3.2 GPH |
|
LP Fuel Consumption @ 50% Load
|
2.4 GPH |
|
LP Power Capacity
|
23000 |
|
NG Fuel Consumption @ 100% Load
|
301 CFH |
|
NG Fuel Consumption @ 50% Load
|
199 CFH |
|
NG Power Capacity
|
21000 |
|
Plug Type
|
(1) NEMA 5-20R - GFCI |
|
RPM
|
1800 |
|
Running Wattage
|
23000 |
|
Starting System
|
12v Auto Start |
|
Voltage
|
120, 240 |
Warranty and Product Information
|
Approved for Commercial Use
|
Yes |
|
EPA Compliant
|
Yes |
|
Manufacturer Warranty
|
5 Year Commercial Engine, 5 Year Residential Engine |
|
SCAQMD Compliant
|
No |
