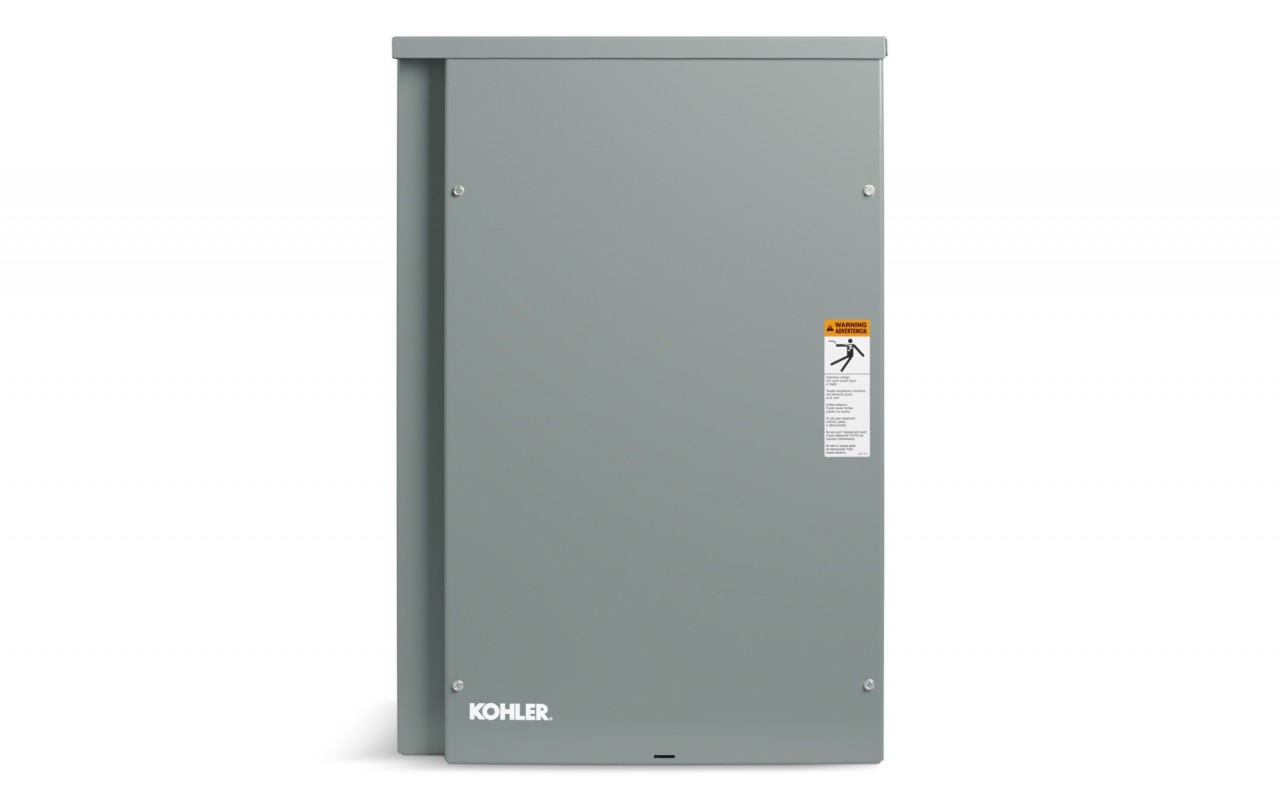

Kohler RXT-JMTC-0100A-QS4 100 Amp 277/480V 3 Phase Nema 3R Automatic Transfer Switch

100 Amp   |   480-Volt 3-Phase   |   3-Pole 4-Wire Solid Neutral  |   NEMA 3R Indoor/Outdoor

The Kohler 100 Amp Automatic Transfer Switch connects a Kohler generator to the main circuit breaker panel. Designed for use only with Kohler generators equipped with the RDC2 or DC2 generator set/transfer switch controller. The RXT Transfer Switch rated for 100 Amps manages the source of power to the circuit breaker panel. The NEMA 3R Aluminum enclosure is corrosion resistant and rated for indoor or outdoor installation.

Features

The Kohler generator's controller continuously monitors the utility service. When it fails, the controller starts the generator and signals the RXT Transfer Switch to change the power source from utility to generator. When the utility service returns, the controller signals the ATS to switch back to utility service. The generator begins its shutdown cycle.

• 100 Amp 3-Pole 4-Wire Solid Neutral Open transition transfer switch.
• Use only with Kohler Generators equipped with a RDC2 or DC2 Generator Set/Transfer Switch controller.
• For 480-Volt 3-Phase installations
• NEMA 3R Rated corrosion-resistant aluminum enclosure for indoor or outdoor installation.
• Accepts a padlock to prevent tampering
• Standard Interface Board provides a 5-minute startup delay for selected loads. Use for large motors.
• Variable speed weekly exercise cycle and self-diagnostic test

Compatible with RDC2 and DC2 Generator Set/Transfer Switch Controllers
